RF Probe Kit

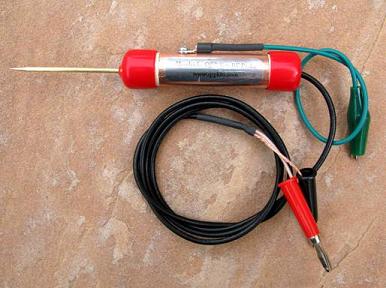

The R.F. probe is a handy test device to have in your shack. When used with an inexpensive high impedance digital voltmeter (typically 11 megohm input impedance), you can measure RF voltage in your solid state circuits, and trace RF through your new designs or malfunctioning circuits. You will be able to detect RF voltages in the range of .25v to 50v, and accurately measure voltages in the range of 1.0v to 50v, the range of the 1N34A diode used in this design, well up to 30mHz. This design is shielded to prevent picking up unwanted stray signals, or broadcasting them to other stages while testing.

The kit is a complete set of components, and detailed assembly instructions are on-line. All that is needed are the usual kit assembly tools.

This product was showcased at the OzarkCon2009 building forum. Look for detailed troubleshooting techniques, using this handy tool in our files section.

Manuals and other useful information

 RF Probe Builders Manual (ver 031809)

 Using the RF Probe

Ordering Information

To order this kit, use the buttons below. (you do not have to have a PayPal account to pay for items using a credit card)

Use Add to cart buttons to add an item to your shopping cart. Use "Continue Shopping" tab to go back and add multiple items to your cart. You can view shipping charges before making payment. Payment can be made by Credit Card, Debit Card or by Paypal. Selecting "Checkout" in your shopping cart will allow you to use a credit card rather than Paypal Please be sure the address you supply is correct. We receive an automated notification when you complete payment. Your order will be shipped as soon as possible unless otherwise stated. Thanks for your support!

RF Probe Kit: 15.00
